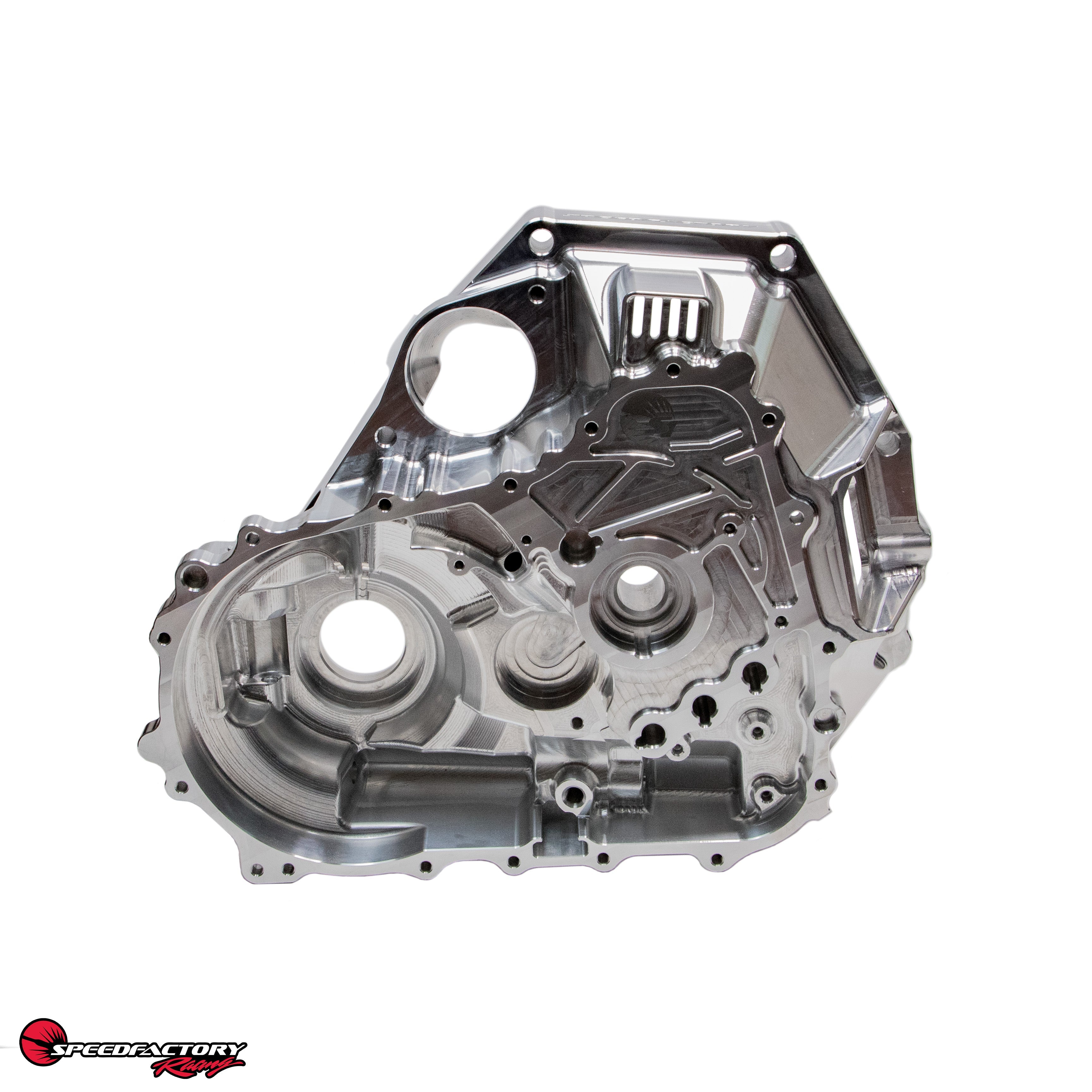

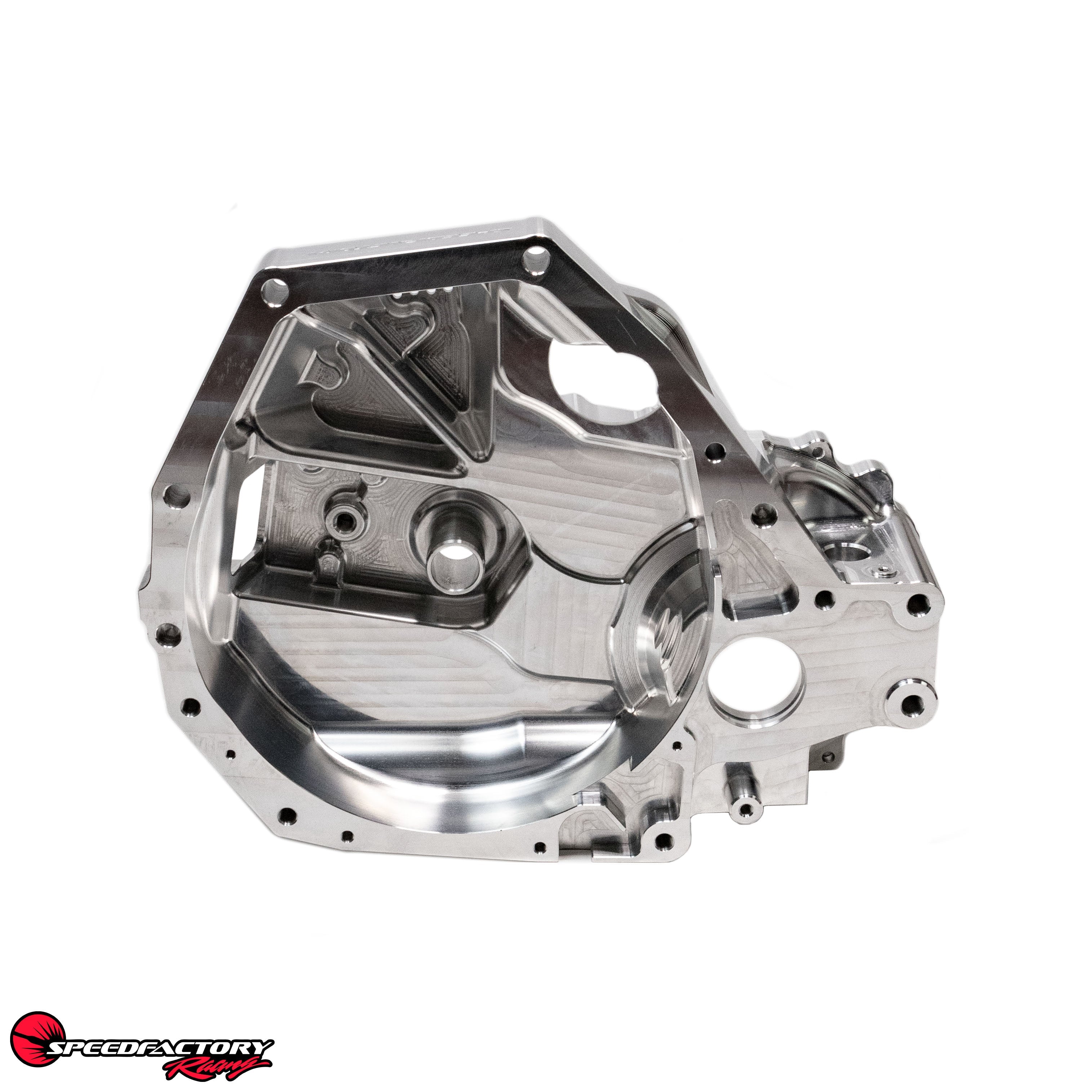

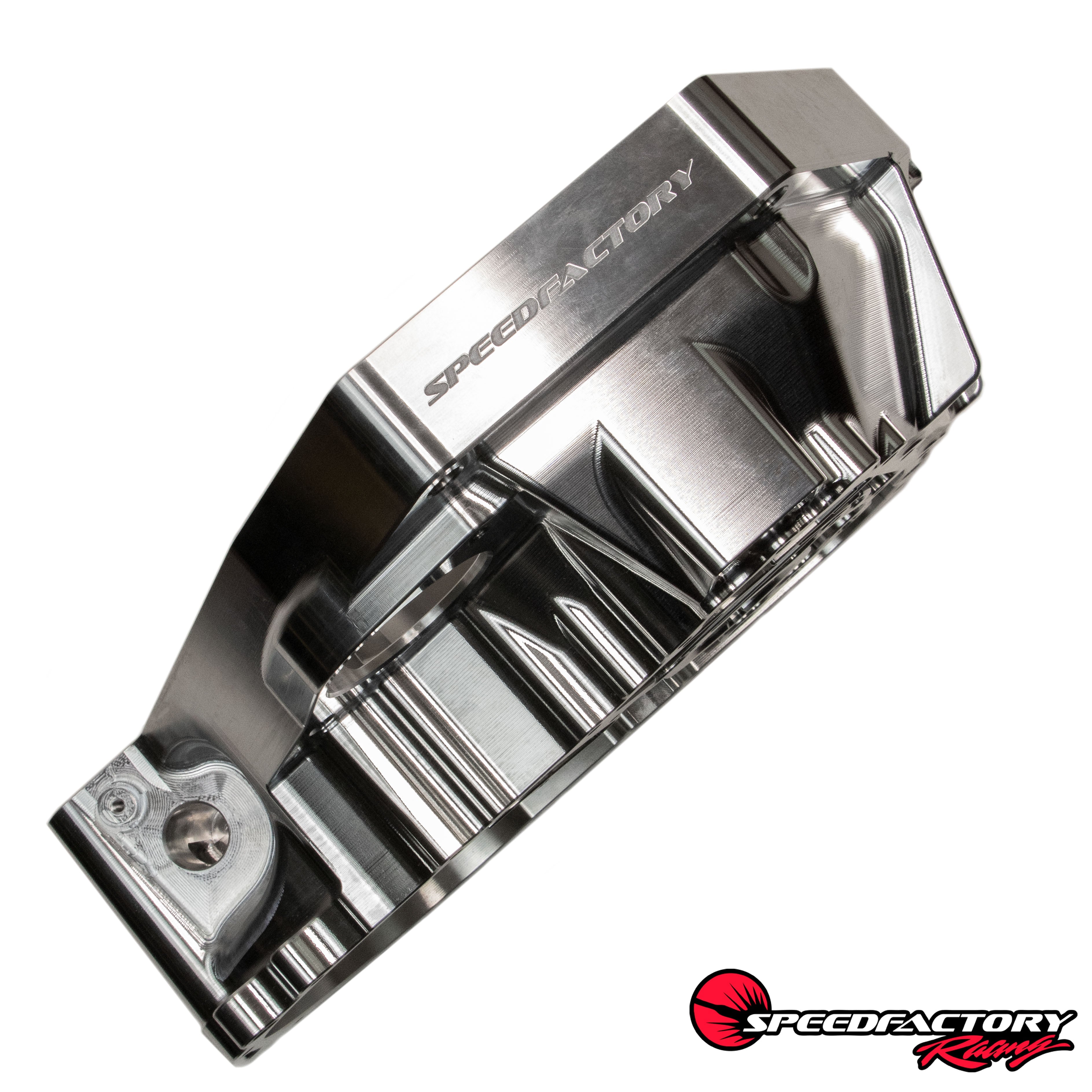

SpeedFactory Racing FWD B-Series Billet Bellhousing

PRE-ORDER YOURS NOW!

Demand has been so high that we have rarely been able to keep this item in stock since released so it's important that you get your order in for earliest possible delivery.

Current estimated ship date is 4-6 weeks from date of purchase.

The SpeedFactory Racing FWD B-Series Billet Bellhousing is your ultimate choice - precise, accurate, & pain-free to build unlike others.

Unmatched quality & unrivaled performance, a truly functional work of art as noted by all the top teams and shops that have made this housing the foundation of choice for their FWD B-Series racing transmissions.

Weighing in at an impressive 6-7lbs lighter than other existing offerings, you will immediately notice the difference in ease of installation/removal and working with it on the bench and can also now take advantage of the ability to get that weight farther forward forward over the nose for better traction and ET's.

In a racing environment where thousandths of a second decide whether you win or lose, you can’t afford to not use the best!

Precision CNC Machined from Solid 6061-T6 Aluminum Billet, our design is only 7.6lbs heavier than the weak cast OEM housing while providing extreme strength and durability needed for the highest-powered street and motorsport applications.

Superior Incorporated Design Elements:

• Built-in housing separation feature (makes splitting the cases for servicing a breeze using an existing case bolt)
• Modified countershaft bearing retention plate location (clears larger diameter aftermarket countershaft teeth while retaining OEM plate and locking tab with no need for any grinding or modification)
• Clears both GSR/ITR and B16/LS fitment LSD’s
• Built-in axle seal stop (for easy & precise depth control during installation)
• Retains OEM oil control features missing in other offerings
• Utilizes x3 M6x1.0 shoulder bolts for precise SCHA location

Pair with our SpeedFactory Modified Shift Change Holder Assembly for the ultimate proven B-Series FWD combo!

NOTE: Requires assembly and shimming to OEM specifications. It is highly recommended that you have the installation performed by a reputable transmission rebuilding specialist. The SFR FWD B-Series billet bellhousings are designed to work with both OEM style single plate or multiplate twin & triple disc 7.25” clutches and both stock clutch fork & release bearing or hydraulic release bearing. Compatible with all currently known aftermarket gearsets, transfer drive gears, and differentials.
