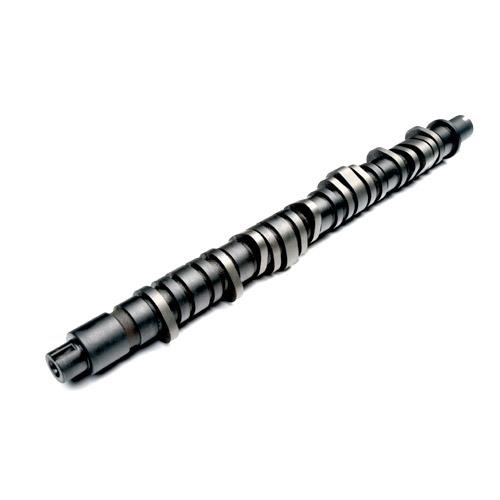

D-Series SOHC VTEC Camshaft (D16Y8) - Stage 1/2/3

D-Series SOHC VTEC Camshaft (D16Y8) - Stage 1/2/3

Vendor: Blox Racing
SKU: BXCM-20103-Y1
Availability: In Stock
Product Type: Camshafts
$300.00
$375.00
$300.00
Select Camshaft Type: Stage 1
Subtotal: $300.00
D-Series SOHC VTEC Camshaft (D16Y8) - Stage 1/2/3

D-Series SOHC VTEC Camshaft (D16Y8) - Stage 1/2/3

$375.00 $300.00
D-Series SOHC VTEC Camshaft (D16Y8) - Stage 1/2/3

D-Series SOHC VTEC Camshaft (D16Y8) - Stage 1/2/3

$375.00 $300.00
Select Camshaft Type: Stage 1
Description
Description
x

BLOX Racing camshafts are designed and manufactured using OEM-spec, chill-cast camshaft cores.  BLOX Racing manufactures camshaft cores specifically tailored to the D16Z6 and D16Y8 engines. MAY BE USED WITH Z6 WHEN USING BLOX CAM GEAR

Stage 1 Camshafts:
Ideal for stock to mild engine builds.
Upgraded valvetrain is not necessary but is always recommended.

Stage 2 Camshafts:
Ideal for mild to highly modified engine builds.
Upgraded valvetrain is required. Head porting is HIGHLY recommended.

Stage 3 Camshafts:
Ideal for highly modified to full race engine builds.
Upgraded valvetrain, cylinder head machining + porting, high compression pistons, and ECU tuning are ALL required.

Stage 1 Cam Specs @ 0.050"

  • INTAKE: 232° / 0.253” (Gross lift: 0.405")
  • EXHAUST: 211° / 0.213” (Gross lift: 0.383")
  • Stage 1 Spec Sheet

Stage 2 Cam Specs @ 0.050"

  • INTAKE: 242° / 0.268” (Gross lift: 0.429")
  • EXHAUST: 217° / 0.242” (Gross lift: 0.436")
  • Stage 2 Spec Sheet

Stage 3 Cam Specs @ 0.050"

  • INTAKE: 247° / 0.276” (Gross lift: 0.442")
  • EXHAUST: 230° / 0.255” (Gross lift: 0.459")
  • Stage 3 Spec Sheet
